HYDRAULIC CYLINDER

engineering oil cylinder

The oil cylinder and hydraulic station is generally applied in metallurgy machines, cutting machine, vehicle assembly line and engineering machines
Operating Speed Range(Not including Cushion Parts): less than 200mm/s(We can also supply other speed range accoding to customer's requirments)
Operating Temperature(Ambient Temperature and Oil Temperature): -10 to +80 ºC(But do not use when oil frozen). If you are intersted in our products or have other request about operating temperature range, pls don't hesitate to contact us.



  Worm Gear Speed Reducer

YGD series basic oil cylinder

The oil cylinder and hydraulic station is generally applied in metallurgy machines, cutting machine, vehicle assembly line and engineering machines



  Variator

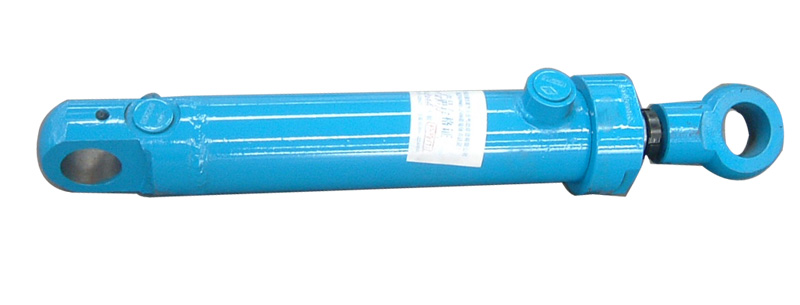

vehicle oil cylinder

vehicle oil cylinder


Electric Motor worm gear reducer


metallurgy hydraulic cylinder

 metallurgy equipment hydraulic cylinder :
1:Pressure: the standard cylinder had two kinds of pressure levels for E and G. E-class applied to pressure more than 6.3 Mpa ~ 16Mpa of the hydraulic cylinders (E-cylinder).G class applied to pressure more than >16Mpa~25Mpa of the hydraulic cylinders (G-cylinder).
2. Seal: E-cylinder used simple structure, good wear resistance, Y-shaped polyurethane ring and the wide application of the Y-shaped rubber ring. G-cylinder use high temperature resistantce,reliable combined seal in V-ring.
3. Dustproof : The hydraulic cylinders adopted polyurethane or rubber free- skeleton dust ring.
4. Applicable media: hydraulic oil, machine oil, emulsion, Inapplicable to organic phosphate .
5.Applicable  temperature:-40 -+120



  Electric Motor

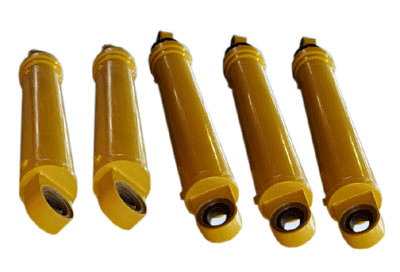

Pull bar type hydraulic cylinder

    Pull bar type hydraulic cylinder



  Electric Motor
