Flow Dividers

1. General Description:

The FM  series flow dividers provide efficient, reliable service for a wide  variety of  applications  in agricultural,  materials handing as well as in construction equipment, having the following functions from a single pump source:

---- synchronized operation of multiple cylinders or hydraulic motors.

---- proportional division of pump output among several circuits.

---- intensified pressure when pressure higher than pump capacity is needed.



2. Model Explanation:



3. Outline Dimensions:

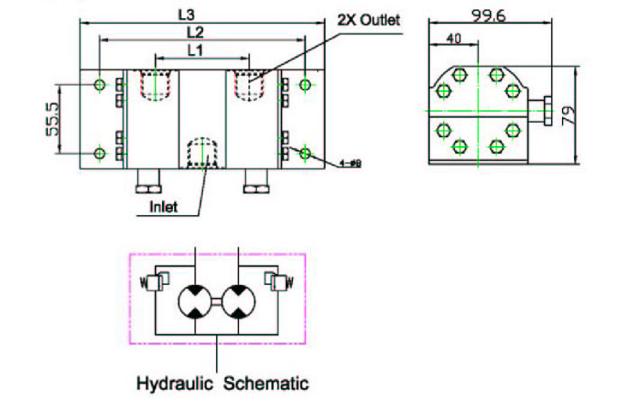

FM*-2R**

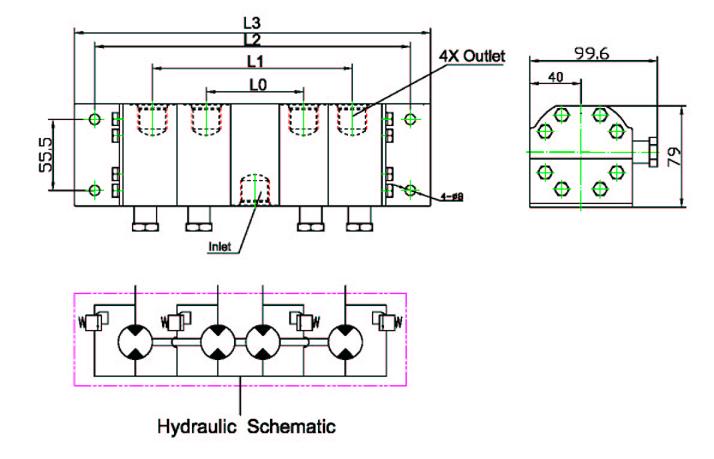

FM*-4R**

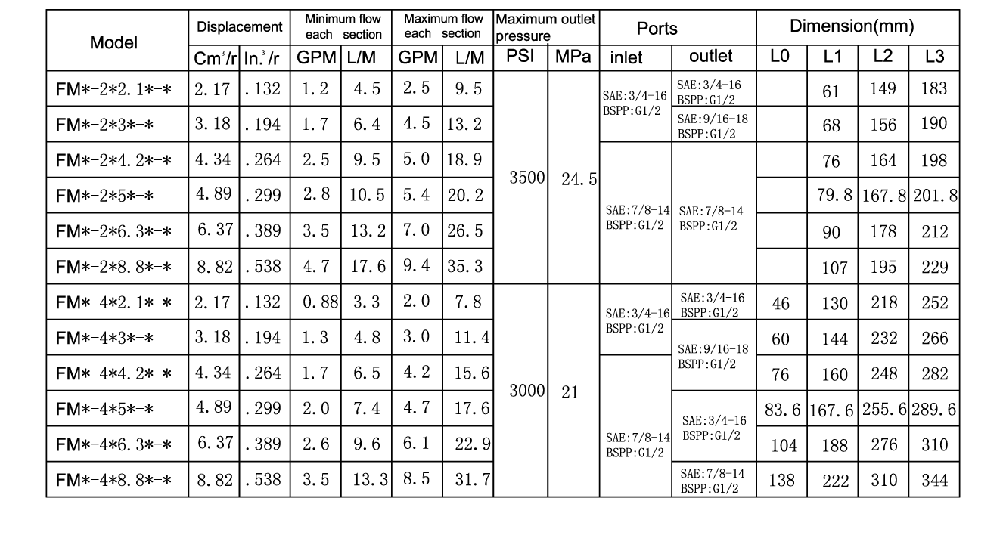

4. Technical Data:
