HANGZHOU CHINABASE MACHINERY CO., LTD.

GEAR PUMP

CBK Series Hi/low Gear Pump

1.Description:

CBK Series Hi low Gear Pump description

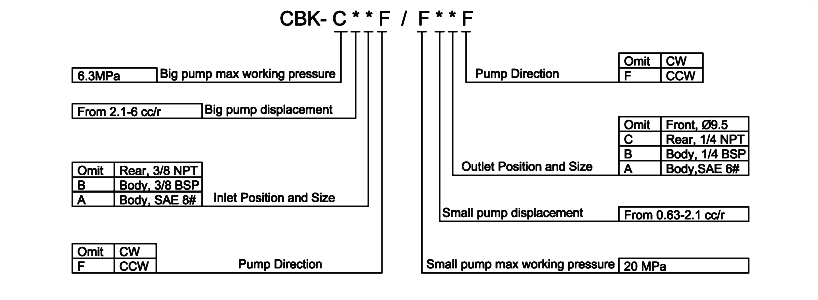

2.Order:

CBK Series Hi low Gear Pump order

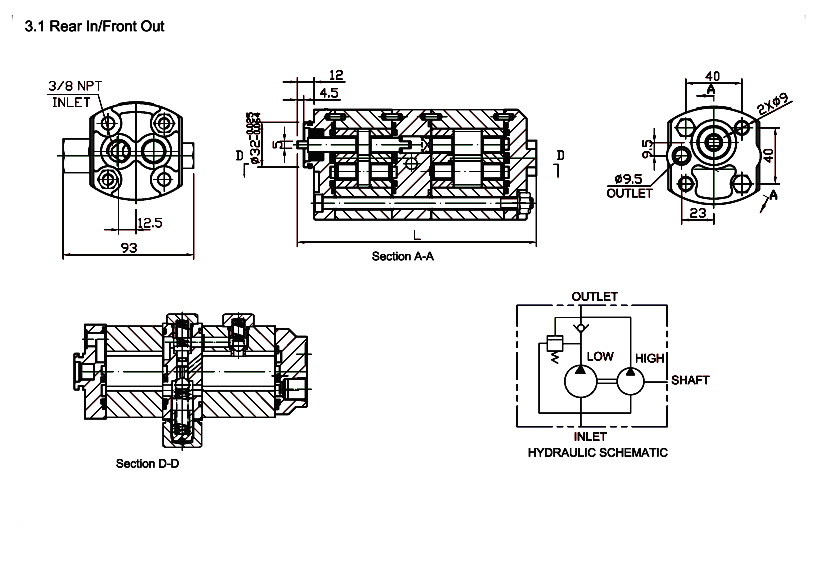

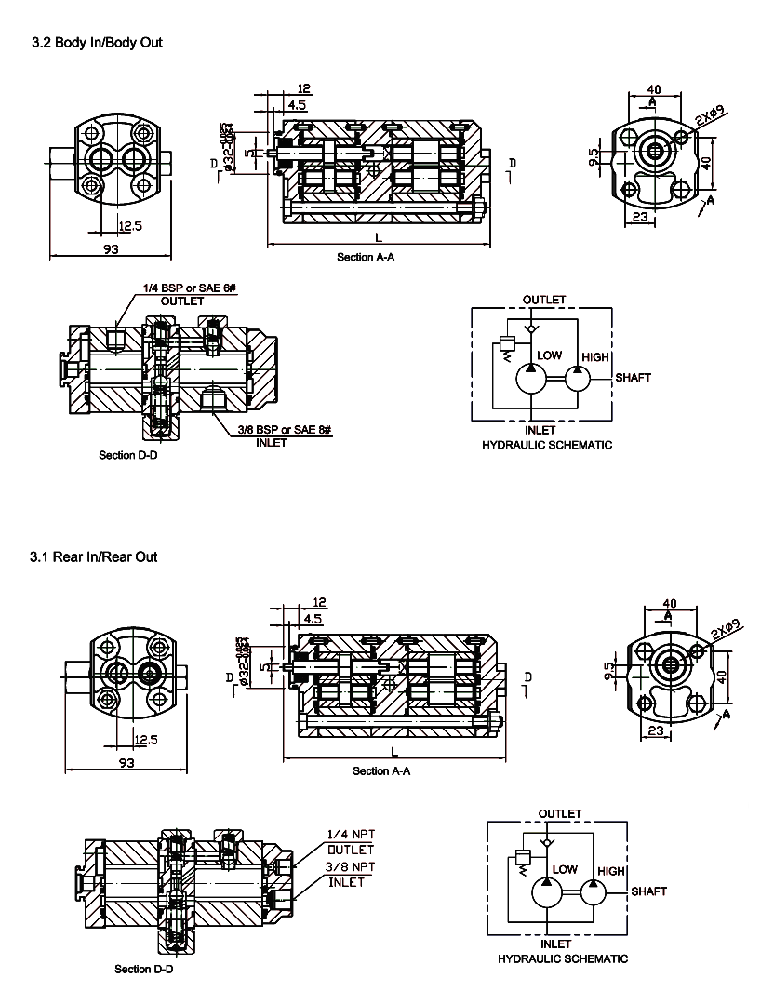

3.Outline and Hydraulic schematic:

CBK Series Hi low Gear Pump outline

CBK Series Hi low Gear Pump outline
